MIL‐DTL‐14362H

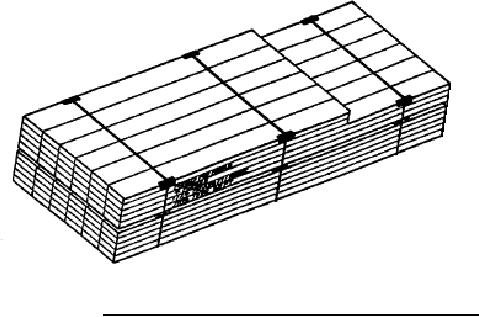

FIGURE 1. Example: Requirements for U.S. Government shipment.
The contract requirements take precedence and may contain other requirements.
Only one length per unit except for remnant quantities.
NOTE: When two or more lengths are unitized in one unit, the longest will be on the bottom and stair-
stepped up to the shortest on top. Not more than 3 lengths per bundle.
Minimum strapping requirements (see 3.2.1.3)
Level A
Levels B and Minimal
10' and less
... 2 Straps
12' and less
... 2 Straps
11' thru 16'
... 3 Straps
13' thru 20'
... 3 Straps
17' thru 22'
... 4 Straps
21' thru 28'
... 4 Straps
23' thru 28'
... 5 Straps
etc.
etc.
NOTE: Strapping shall be 3/4" (.75") wide minimum, placed 2 feet from each end, and have a minimum
breaking strength of 1,830 pounds or 2,000 pounds, as applicable (see 3.2.1.3).
Unit sizes (see 3.2.1.2)
Domestic:
Height 49" maximum, width 47-1/2" (47.50") maximum.
Overseas:
Height 25-3/4" (25.75") maximum, width 47-1/2" maximum.
Edge protectors (see 3.2.1.4).
Edge protectors are required for all softwood and hardwood lumber, 4" and less in thickness.
Cross strips (see 3.2.1.5).
Cross strips 3/4" (.75") to 1" thick by 2-1/2" (2.50") wide minimum, shall be under each strap location,
placed midway the depth of the unit.
7
